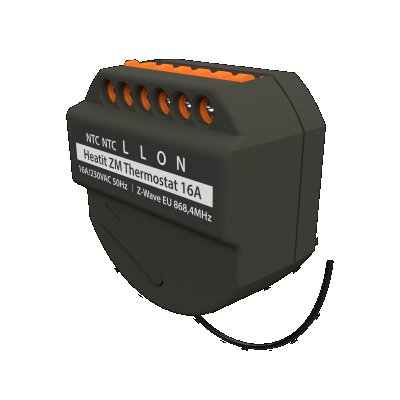

Heatit ZM Thermostat 16A

Heatit ZM Thermostat is an electronic thermostat for electric underfloor heating systems, designed for installation in the wall.

The thermostat allows you to control your electric heating via your Z-Wave network. This module is equipped with a 16A relay. It is necessary to wire a sensor included in the scope of delivery. The Heatit ZM thermostat has an active power measurement and provides you with information about your power consumption in real time.

 Features

• Thermostat for inwall installations
• 16A/3600W resistive loads
• NTC 10kΩ sensor (included)
• Setpoint to be set in gateway
• ZeroX detection
• SmartStart
• Firmware update (OTA)
• Active power metering
• Supports encryption mode: S0, S2 Authenticated Class, S2 Unauthenticated Class

Technical data:

• Operating voltage: 230V 50 Hz AC
• Maximum load: 3600W
• Hysteresis: 0.3 - 3.0 Adjustable
• Sensor type: NTC 10 kOhm
• Radio technology: Z-Wave Plus
• Operating temperature: 5°C - 40°C
• Humidity: 0 - 95%
